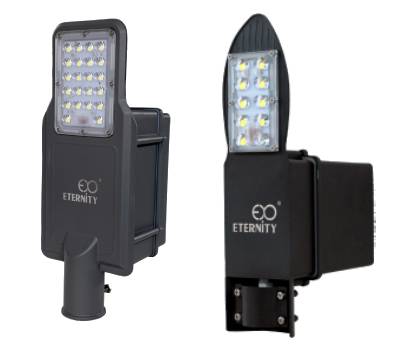

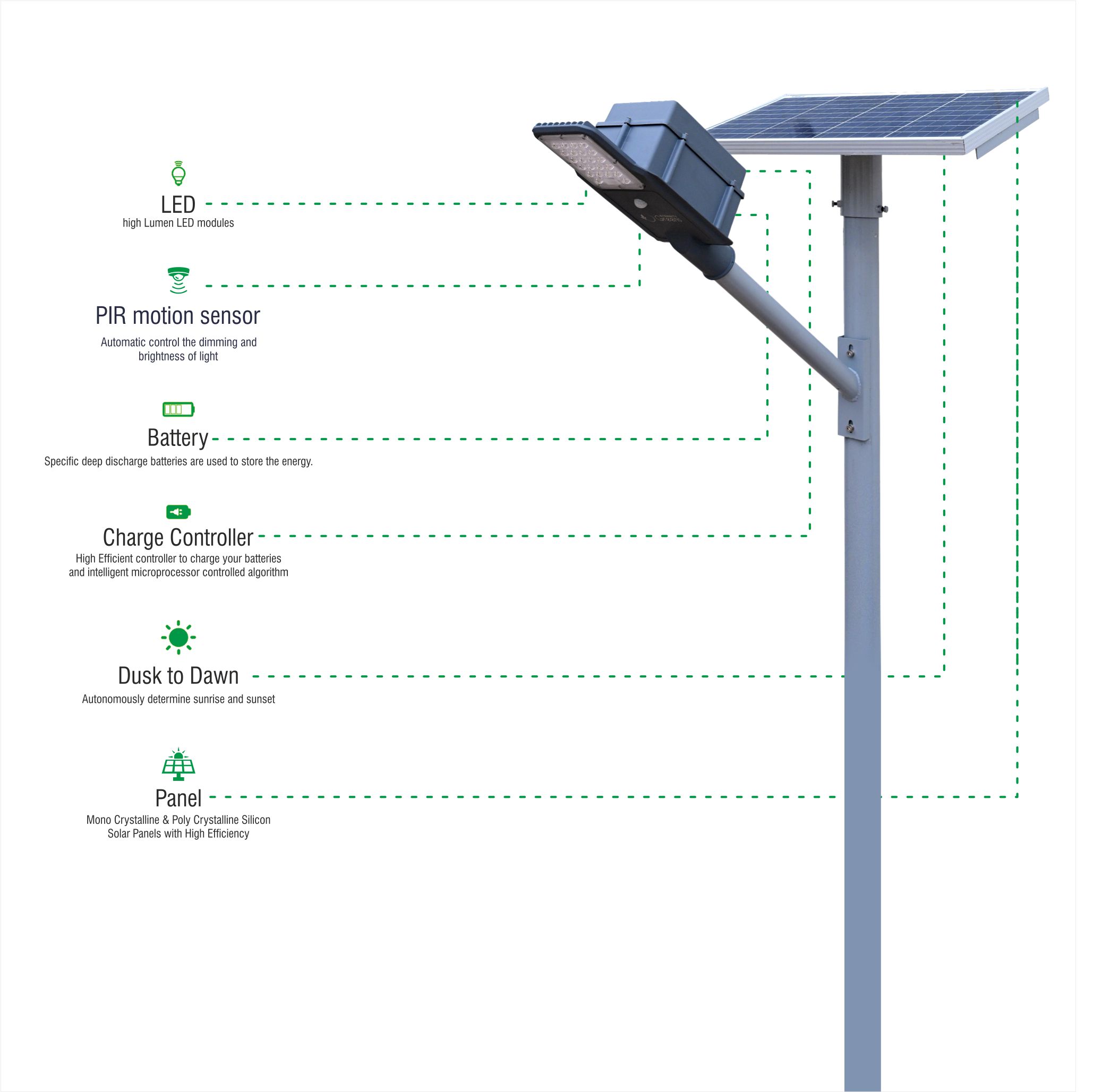

In integrated solr street lights we installed LED luminary separately and therefore we may install PV module with proper solar direction and tilt angle. By locating directly on the light fixture and placing the battery within the risk of charge. we are offering our range as per MNRE guidelines as well
We have wide range : 10W-60W
| Product Code | LED Wattage | Suggested PV Module | Battery | Lum. Flux | Dimmension(mm) |
|---|---|---|---|---|---|
| ETSSL-INT-10-PRM-A | 10watt | 30watt | 12.8V 6Ah LiFePo4 | 1400 lumen | 325 x 160 x 90 |
| ETSSL-INT-12-PRM-A | 12watt | 40watt | 12.8V 12Ah LiFePo4 | 1680 lumen | 325 x 160 x 90 |
| ETSSL-INT-15-PRM-A | 15watt | 50watt | 12.8V 12Ah LiFePo4 | 2100 lumen | 325 x 160 x 90 |
| ETSSL-INT-18-PRM-A | 18watt | 60watt | 12.8V 18Ah LiFePo4 | 2520 lumen | 430 x 170 x 120 |
| ETSSL-INT-24-PRM-A | 24watt | 75watt | 12.8V 18Ah LiFePo4 | 3360 lumen | 430 x 170 x 120 |
| ETSSL-INT-30-PRM-A | 30watt | 100watt | 12.8V 24Ah LiFePo4 | 4200 lumen | 430 x 170 x 120 |
| ETSSL-INT-36-PRM-A | 36watt | 120watt | 12.8V 30Ah LiFePo4 | 5040 lumen | 430 x 170 x 120 |
| ETSSL-INT-40-PRM-A | 40watt | 120watt | 12.8V 36Ah LiFePo4 | 5600 lumen | 430 x 170 x 120 |
| ETSSL-INT-45-PRM-A | 45watt | 165watt | 12.8V 42Ah LiFePo4 | 6300 lumen | 430 x 170 x 120 |
| ETSSL-INT-50-PRM-A | 50watt | 165watt | 12.8V 48Ah LiFePo4 | 7000 lumen | 430 x 170 x 120 |
| ETSSL-INT-60-PRM-A | 60watt | 165watt | 12.8V 54Ah LiFePo4 | 8400 lumen | 430 x 170 x 120 |
