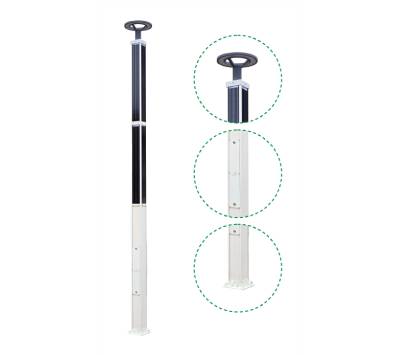

This manual contains important instructions for the installation and maintainance of the solar led post top pole light. The Eternity's solar led post top pole light system is standalone, off-grid, solar-powered lighting system. Years of engineering, developement, and testing ensure that this system meets or exceeds all perforrmance and reliability specifications. Every system that leaves our factory has been quality control tested and inspected to assure you of an easy installation and highly dependable performance. All mechanical fittings and electrical connections are designed for simple and reliable installation. The system is ready for use immediately after the components are mounted and the plug and play connectors are joined.
| Parameter | Description |
|---|---|
| Casting + Materials LED fitting | PDC + ADC 12 |
| Diffuser | Clear diamong cut PC |
| Wattage | 30W |
| Lumen Output | > 3500 Lumens |
| Colour Temprature | 2500K / 4000K / 6500K |
| Solar PV Module | 180WP High Efficiency Mono Crystalline |
| Solar Module Size | 1100 x 133 mm |
| VOC of solar module | 17V |
| Type of battery | BIS approved cell 12.8v 36ah LiFeP04 |
| Battery location | Inside the pole |
| Backup | 24 hours with dimming |
| Solar Charge Controller Type & Capacity | MPPT CCU & 12.8v 15Amp |
| Dusk to dawn | Yes |
| Protection |
|
| Hight up to the fixure top | 12 Feet |
| Materials of pole | Extruded Aluminium |
| Paint | Powder Coated |
| Base Plate | 250 x 250 x 8mm |
Short circuit protection
